RH-KBC small countersunk head vertical stripe blind hole
Classification:
Key words:

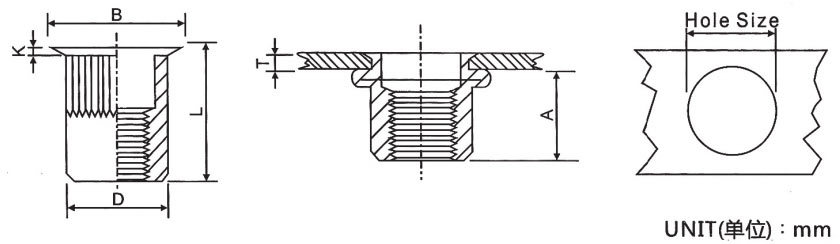

- Product Description
-
Thread
No.
P/N
T(GRIP RANGE)
Min Max
A
Rer
Hole Size
0.1
0
D
0.07
-0.1
B K L
M4
RH-KBC-0420
RH-KBC-0435
0.5-2.0
2.0-3.5
11.0
6.0 5.9
7.0 0.5
15.0
16.5
M5
RH-KBC-0520
RH-KBC-0535
0.5-2.0
2.0-3.5
12.5
7.0 6.9
8.0 0.5
16.5
18.0
M6
RH-KBC-0630
RH-KBC-0645
0.5-3.0
3.0-4.5
15.5
9.0 8.9
10.0 0.6
20.5
22.0
M8
RH-KBC-0830
RH-KBC-0845
0.5-3.0
3.0-4.5
17.0
11.0 10.9
12.0 0.65
23.0
24.5
M10
RH-KBC-1030
RH-KBC-1050
1.0-3.0
3.0-5.0
18.2
13.0 12.9
14.0 0.7
24.5
26.0
