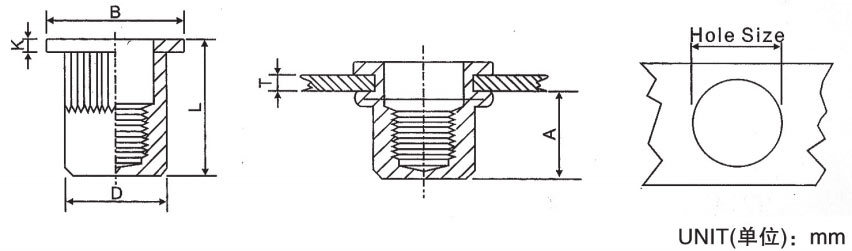

FH-KB Flat Vertical Stripe
Classification:
Key words:
- Product Description
-
Thread
No.
P/N
T(GRIP RANGE)
Min Max
A
Rer
Hole Size
0.1
0
D
0.07
-0.1
B
K
L
M3
FH-KB-0315
0.5-1.5
6.0 5.0
4.9
8.0
0.8
10.0
M4
FH-KB-0420
FH-KB-0435
0.5-2.0
2.0-3.5
6.0
6.0
5.9
9.0
0.8
10.5
12.0
M5
FH-KB-0525
FH-KB-0550
0.5-2.5
2.5-5.0
7.5
8.5
7.0
6.9
10.0
1.0
13.0
16.5
M6
FH-KB-0630
FH-KB-0655
0.5-3.0
3.0-5.5
9.2
10.5
9.0
8.9
12.30(13.0)
1.3
15.5
19.5
M8
FH-KB-0835
FH-KB-0860
1.0-3.5
3.5-6.0
11.5
11.0
10.9
14.5(16.0)
1.5
18.5
21.0
M10
FH-KB-1040
FH-KB-1065
1.0-4.0
4.0-6.5
13.5
13.0
12.9
17.0(19.0)
1.7
21.5
24.0
M12
FH-KB-1240
FH-KB-1265
1.0-4.0
4.0-6.5
13.5
14.0
15.0
14.9
18.0
1.7
22.0
25.0
M10
FH-KB-1035(12H)
1.0-3.5
11.0 12.0
11.9
16.0
1.6
19.0
M12
FH-KB-1240(16H)
FH-KB-1260(16H)
1.0-4.0
3.5-6.0
15.0
16.0
16.0
15.9
22.0
2.0
25.0
28.0
