FH-RB flat head cylinder
Classification:
Key words:

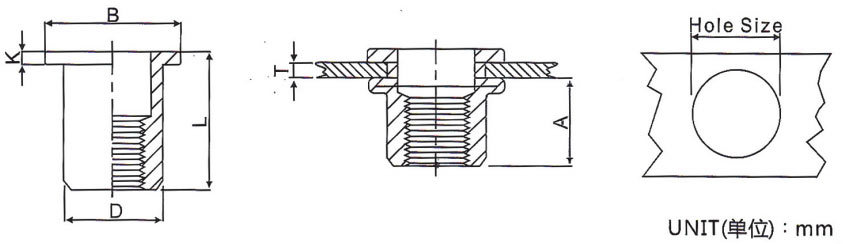

- Product Description
-
Thread
No.
P/N
T(GRIP RANGE)
Min Max
A
Rer
Hole Size
0.1
0
D
0.07
-0.1
B K
L
M3
FH-RB-0315
FH-RB-0325
0.5-1.5
1.5-2.5
4.7
5.0
4.9 7.2 0.8
8.5
9.5
M4
FH-RB-0420
FH-RB-0435
0.5-2.0
2.0-3.5
6.0
6.0
5.9 8.5 0.8
10.5
12.0
M5
FH-RB-0525
FH-RB-0550
0.5-2.5
2.5-5.0
7.5
8.5
7.0
6.9 10.0 1.0
13.0
17.0
M6
FH-RB-0630
FH-RB-0655
0.5-3.0
3.0-5.5
9.2
9.0
8.9 12.3 1.3
15.5
18.0
M8
FH-RB-0835
FH-RB-0860
0.5-3.5
3.5-6.0
11.5
11.0
10.9 15.0 1.5
18.5
21.0
M10
FH-RB-1025
0.5-2.5
11.5
13.0
12.9 16.3 1.5
17.0
M10
FH-RB-1040
FH-RB-1060
2.5-4.0
4.0-6.0
12.5
13.0
12.9 17.0 1.6
21.0
24.0
M10
FH-RB-1035(12H)
1.0-3.5
11.0
12.0
11.9 16.0 1.6
19.0
M12
FH-RB-1240
FH-RB-1265
1.0-4.0
4.0-6.5
13.5
15.0
14.9 18.0 1.7
22.0
25.0
M12
FH-RB-1240(16H)
1.0-4.0
16.0
16.0
15.9 22.0 2.0
25.0
※ can produce M14 and M16 rivet nuts according to customer requirements.
