Rivet nut

Widely used in automobiles, railways, construction, decoration, shelves, indoor and outdoor furniture, household appliances and other industries and exported to mainland China and the world more than 20 countries and regions.

E-mail:

1796676063@qq.com

Telephone:

+86-310-4565518

Product Message

Related Products

Classification:

Pressure riveting series

Key words:

Rivet nut

Pressure riveting

Product Description

English Parameter Table

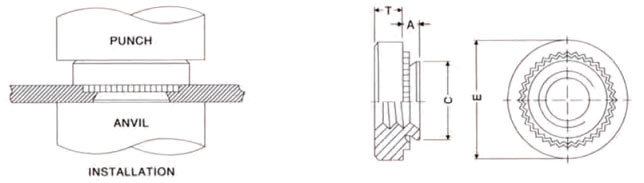

Thread Size	Type		Thread Code	Shank Code	A Max.	Min Sheet Thickness	Hole Size In Sheet 0.03	C Max.	E ±0.1	T ±0.1
	Steel	Stainless Steel
.086-56 (#2-56)	S	CLS	256	0	.030	.030	.166	.165	25	07
				1	.038	.040
				2	.054	.056
.099-48 (#3-48)	S	CLS	348	0	.030	.030	.166	.165	.25	.07
				1	.038	.040
				2	.054	.056
.112-40 (#4-40)	S	CLS	440	0	.030	.030	.166	.165	.25	.07
				1	.038	.040
				2	.054	.056
				3	.087	.091
.138-32 (#6-32)	S	CLS	632	0	.030	.030	.1875	.187	.275	.07
				1	.038	.040
				2	.054	.056
				3	.087	.091
.164-32 (#8-32)	S	CLS	832	0	.030	.030	.213	.212	.315	.09
				1	.038	.040
				2	.054	.056
				3	.087	.091
.190-32 (#10-32)	S	CLS	032	0	.030	.030	.250	.249	.354	.09
				1	.038	.040
				1	.054	.056
				1	.087	.091
.216-24 (#12-24)	S	CLS	1224	1	.038	.040	.277	.276	.374	.13
				2	.054	.056
				3	.087	.091
.250-20 (1/4-20)	S	CLS	0420	0	.045	.047	.344	.343	.433	.17
				1	.054	.056
				2	.087	.091
				3	.120	.125
.313-18 (5/16-18)	S	CLS	0518	1	.054	.056	.413	.412	.50	.23
				2	.087	.091
				3	.120	.125
.375-16 (3/8-16)	S	CLS	0616	1	.087	.091	.500	.499	.55	.27
				2	.120	.125
				3	.235	.250
.500-13 (1/2-13)	S	CLS	0813	1	.120	.125	.656	.655	.787	.36
				2	.235	.250
