Rivet nut
Widely used in automobiles, railways, construction, decoration, shelves, indoor and outdoor furniture, household appliances and other industries and exported to mainland China and the world more than 20 countries and regions.
Classification:
Key words:
- Product Description
-

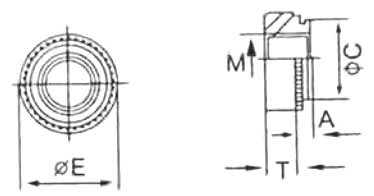

Thread Model Thread code Bottom code A(shank) Max. Minimum plate thickness Mounting hole C
Max
E
±0.25
T
±0.10
Minimum Border Carbon Steel Stainless Steel hardened rigid M2× 0.4 S CLS SP M2 -00 0.57 0.6 4.22 4.2 6.35 1.5 4.8 -0 0.77 0.8 -1 0.97 1 -2 1.38 1.4 -3 1.95 2 M2.5 × 0.45 S CLS SP M2.5 -00 0.57 0.6 4.22 4.2 6.35 1.5 4.8 -0 0.77 0.8 -1 0.97 1 -2 1.38 1.4 -3
1.95 2 M3 × 0.5 S CLS SP M3 -00 0.57 0.6 4.22 4.2 6.35 1.5 4.8 -0 0.77 0.8 -1 0.97 1 -2 1.38 1.4 -3 1.95 2 M 3.5 × 0.6 S CLS / M3.5 -00 0.57 0.6 4.75 4.73 7.11 1.5 5.6 -0 0.77 0.8 -1 0.97 1 -2 1.38 1.4 -3 1.92 2 M4 × 0.7 S CLS SP M4 -00 0.57 0.6 5.41 5.38 7.87 2 6.9 -0 0.77 0.8 -1 0.97 1 -2 1.38 1.4 -3 1.92 2 M5 × 0.8 S CLS SP M5 -00 0.57 0.6 6.35 6.33 8.64 2 7.1 -0 0.77 0.8 -1 0.97 1 -2 1.38 1.4 -3 1.95 2 M6 × 1 S CLS SP M6 -000 0.77 0.8 8.75
8.73 11.18 4.08 8.6 -00 0.89 0.92 -0 1.15 1.2 -1 1.38 1.4 -1.9 1.9 2 -2 2.21 2.29 -3 2.95 3 M8 × 1.25 S CLS SP M8 -00 0.97 1 10.5 10.47 12.7 5.47 9.7 -0 1.15 1.2 -1 1.38 1.4 -2 2.21 2.29 -3 2.95 3 M10 × 1.5 S CLS SP M10 -00 1.38 1.4 14 13.97 17.35 7.48 13.5 -0 1.6 1.7 -1 2.21 2.29 -2 3.05 3.18 M12 × 1.75 S / / M12 -00 1.57 1.6 17 16.95 20.57 8.5 16 -1 2.21 2.29 -2 2.95 3.18 -3 5.95 5.8
